IP Based Control Room Solutions
Design, Manage, Control
Aetria is Live Wall’s solution for the complete design, management, operation and monitoring of control rooms. By connecting workstations, video walls and content.
A Single, Centralized Interface to Manage Everything in the Control Room
- Easily configure and manage hundreds of sources
- Setup and configure all workstations and video walls
- Store all sources, templates and layouts in a central database
Dedicated Workstation Solutions Put the Operator First
- Easy to use interfaces put operator objectives first and minimize training needs
- Secure access to assets with enterprise grade user rights management
- Instant KVM control of sources with OneControl
- Push to any video wall
Anything anywhere
INTELLIGENT CONTENT DELIVERY CONNECTS ANY SOURCE TO ANY WORKSTATION OR VIDEO WALL
- All content is shared across a dedicated LWM network.
- All sources, templates and layouts are available for display on any display surface.
- Operators get instant access to sources at up to 4K60 with sub-millisecond latency.
- Intelligent bandwidth and port management provides content at the best resolution and quality for each end point.
Component Overview
Aetria Command Center
A unified interface for system integrators to design, manage and deploy control rooms solutions. Once deployed, control room operators can quickly and easily view the sources they need in real-time on any connected display surface..
Aetria Workstation
Aetria Workstation gives control room operators the flexibility to view multiple sources on their local workstation screens.Using single or multiple monitors, operators can segment their desktop into dedicated zones to display any combination of sources available in Aetria alongside their main desktop and local applications.
Aetria Wallcontrol
Aetria WallControl runs on a Live Wall video processor to connect Aetria to a video wall, enabling seamless integration of video walls into the Aetria system
Aetria Command Center
COMPREHENSIVE AND UNIFIED INTERFACE
Sitting at the heart of the Aetria solution, Aetria Command Center is a comprehensive and unified interface for systems integrators to design, manage and operate control rooms solutions.
Once configured, control room operators use Aetria Command Center to quickly and easily view the sources they need in real-time on any connected display surface. With built-in monitoring and diagnostics, Aetria Command Center ensures that all components of the Aetria system are functioning as required and provides real-time alerts to enable swift resolution if any issues occur.
SINGLE, ALL-IN-ONE APPLICATION
Aetria Command Center provides a single, centralized application for the complete end-to-end design, management and control of control room connectivity solutions.
ANY SOURCE, ANY SCREEN, ANY TIME
With Aetria, every online source is multicast, giving users the flexibility to send multiple copies of each source to any connected workstation or video wall as and when needed.
PROJECT IMPORT
Projects created in Aetria Designer can be imported directly into Aetria Command Center, allowing the set up of purchased equipment to be streamlined.
WEB-BASED MANAGEMENT INTERFACE

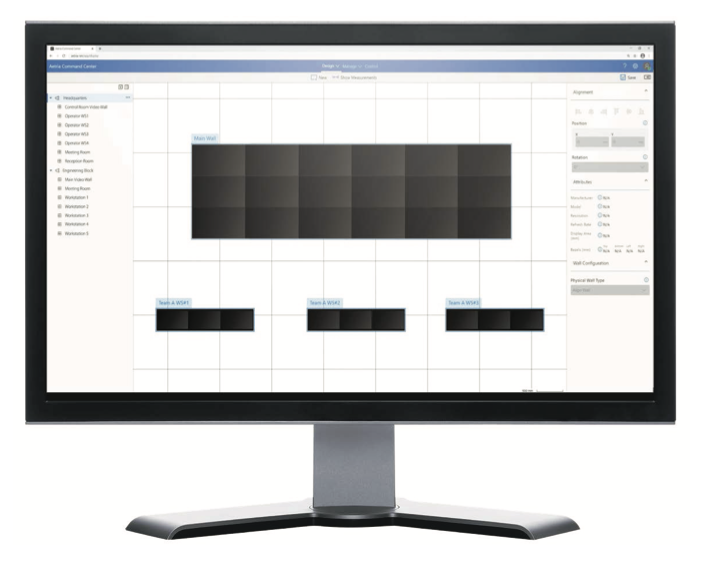

The intuitive web-based interface allows users to quickly and easily set up all required rooms and locations, video walls and displays, operator workstations and available sources and content.
TEMPLATES AND LAYOUTS
Using the built-in template and layout functionality, users can populate connected video walls or workstations with multiple sources with a single click.
Layouts are easy to design using the drag and drop interface, and saved layouts can be shared with other users. Any layout can be shown on any connected display surface of any size, from a large video wall to a single operator screen.
SOURCE MANAGEMENT MADE EASY
With unique features for source management and identification, Aetria Command Center makes managing hundreds of sources easy. For each source, users can assign friendly names and add text labels (on-screen- display) to enable quick identification.
Cropping is available to allow selecting areas of interest within a source. Users can also create banners to add supplementary information to video walls or displays, and borders and frames can be added to sources to quickly highlight, group or identify them.
ENHANCED GRAPHICS FEATURES
Enhanced features allowing window capabilities to any content, on any end point. Operators will be able categorize and identify sources, add supplementary information in overlays, and create custom banners for information displays on video walls and workstations.
SECURITY FIRST
User accounts and permissions are configured in Aetria Command Center by the allocated system administrator(s). Each configured user can be granted access to individual sources and screens to give full access control of all assets across the entire Aetria ecosystem.
MONITORING AND DIAGNOSTICS
With built-in monitoring and diagnostics, Aetria provides real-time monitoring of all connected devices, ensuring smooth operation and swift response if issues occur
EASY INSTALLATION
Aetria Command Center is delivered on ‘Aetria Network Manager’, a pre-installed 1U rack mount appliance for quick and easy installation.
Aetria Command Center Feature List
| Feature | Description |
|---|---|
| DESIGN | |
| Project Setup | Import project design into Aetria Confirm number of walls and workstations |
| MANAGE | 1920x1080 |

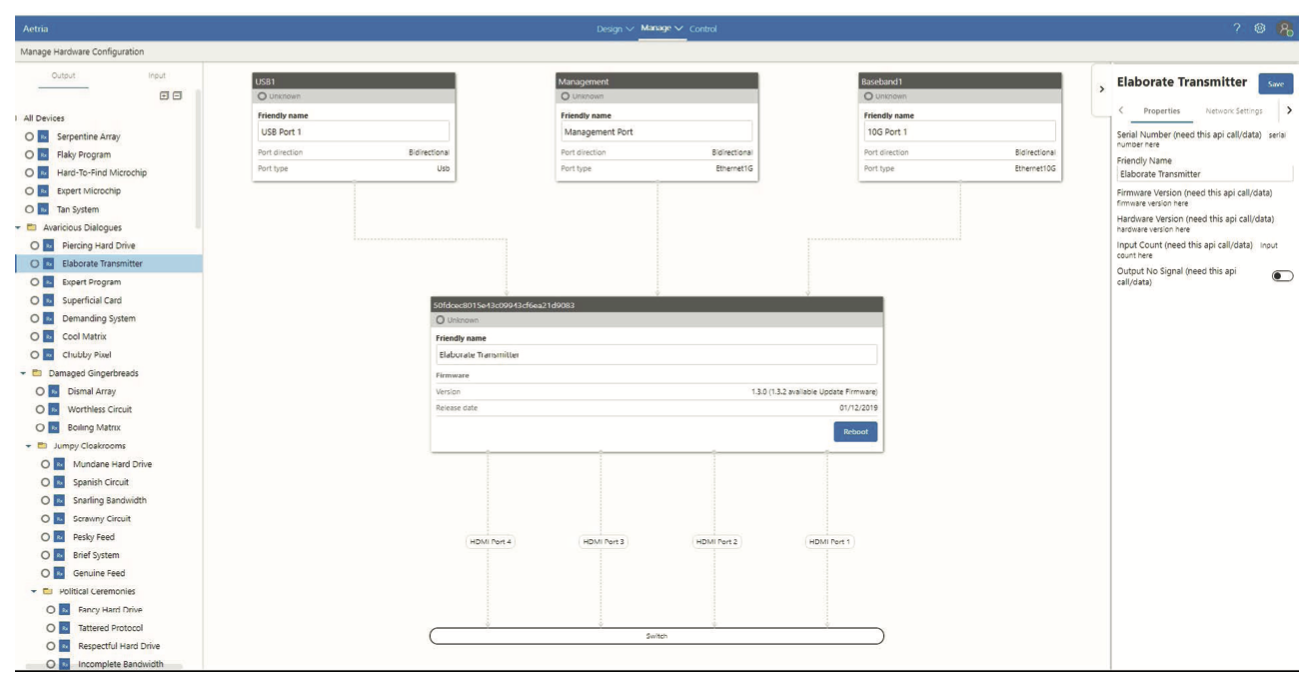

| Hardware configuration | Device discovery and provisioning Hardware source management and naming Manage hardware settings and updates Configure redundancy Source preview Aetria WallControl and Aetria Workstation endpoint management |
| Display Surfaces | Assign hardware devices to walls and monitors Determine video wall presets |
| Templates | Create and edit centralized library of templates for use on workstations and walls |
| Sources | Manage all sources within the environment Create new sources Remote Connections (VNC / RDP) Web pages Network video streams Composite windows Carousels Define local VSN applications Bulk Upload of IP streams Cropping |
| Asset Management | Create banners, OSDs, borders for instant deployment onto sources |
| Layouts | Create and edit centralized library of layouts for use on workstations and walls |
| User Rights Management | Fully secure user rights management with optional Active Directory integration Create users and define roles to allow access to different sources and menu options |
| CONTROL | |
| Walls | View all networked walls, add and clear wall content |
| Sources | Add sources to the wall via drag and drop |
| Templates and Layouts | Add and clear templates and layouts from the wall |
| Wall Properties | View and edit properties including frame size/color, on/off |
| Content | Search and filter content by name/tag |
Aetria Workstation
EMPOWERING THE CONTROL ROOM OPERATOR
Aetria Workstation gives control room operators the flexibility to view multiple sources on their local workstation screens.
Using single or multiple monitors, operators can segment their desktop into dedicated zones to display any combination of sources available in Aetria alongside their main desktop and local applications.
Using Aetria Workstation, sources can be easily viewed, controlled or shared to other operator workstations or any connected video wall for wider viewing.
USER-DEFINED ZONES
Using Aetria Workstation, users can segment their desktop surface into multiple areas or zones for viewing available content alongside local applications.
SOURCE PREVIEW
Users can preview any configured source in the Aetria network on their local workstation.
COLLABORATION IS MADE EASY
Aetria supports multicast for each source, allowing users to share multiple copies of sources to any connected screen(s) or video wall.
TEMPLATES AND LAYOUTS
Using the built-in template and layout functionality, Aetria Workstation allows users to save their current view for quick recall when needed.
With layout ‘auto-fit’, users can show layouts saved on their local workstation on any connected display surface of any size, from a large video wall to a single operator screen.
ENHANCED GRAPHICS FEATURES
Enhanced features allowing window capabilities to any content, on any end point. Operators will be able categorize and identify sources, add supplementary information in overlays, and create custom banners for information displays on video walls and workstations.
Aetria Wallcontrol
VIDEO WALLS CONNECTED
Powered by Live Wall’s proven video wall technology, Aetria WallControl enables seamless integration of video walls into the Aetria system.
The hardware behind Aetria WallControl is Live Wall’s range of video processor systems. Video VP40i wall processor that have been powering video walls in critical control rooms for over a decade. The Aetria WallControl software connects VP40i powered video walls to the Aetria system and enables complete, seamless control through the Aetria Command Center.
Placement and organization of content on connected video walls is easy with support for layouts, templates, on screen display (OSD) and carousels.
MULTI-WALL
Aetria allows multiple walls to be delivered by a single video processor system. Walls in separate areas of a building can be independently driven from a single location.Multiple walls can be easily set-up and if required each wall can be assigned a unique set of sources or video resources.
VISION ENCODE
Vision Encode allows sources such as HDMI feeds to be captured within the VP40i video wall Processor. The sources can be displayed on a video wall, or encoded into H.264 and streamed out so that the content can be displayed in other locations.
